C Z Section Purlin Steel Structure Warehouse Load Bearing Structure
Product Description
Steel structure warehouse is usually composed by a series of steel structure members, including H section steel column, H section steel beam, C/Z section purlin, bracing and cladding, etc., which are load-bearing structure of the building.
People today have a great demand of steel structure warehouse because of its light weight steel structure, easy transport and fast construction. With the development of the times, steel structure warehouse is becoming a popular and the most cost-efficient building type, which is the top option in industrial and commercial construction area.
We will provide the accurate budget, construction plan and detail drawing of steel structure warehouse according to your different specific application and request. Steel structure section and panel will be fabricated in different dimension at factory and directly fixed by bolts and self-tapping screws at site.
Product Features
As with any other type of building, the advantages of steel structure warehouse are quite numerous:
1. Cost Saving
Price in per Sq. M can be 25% lower than traditional buildings. Site erection cost is lower as installation peroid is shorter and erection process is easier.
2. Quality Control
Designed and fabricated for warehouse buildings is strict in quality control. The manufacture process is controlled rigidly from beginning to finishing, including designing and detailing, as well as manufacturing at factory workshop.
3. Quick Erection

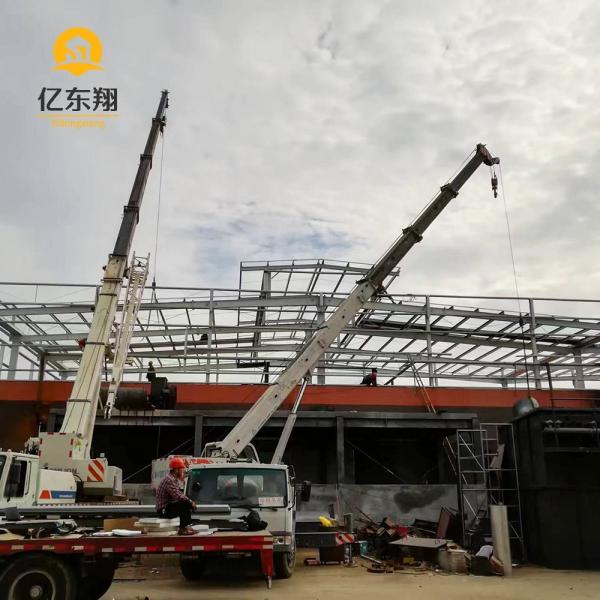

All steel members are manufactured at factory with precise size and are connected by bolts and nuts on site. So the erection will be fast and easy to install.
4. Flexibility
Prefabricated warehouse buildings are flexible in any requirement of design, easy to expand in the future and also economically with lower transportation cost.
5. Energy Efficiency
Prefabricated warehouse buildings are the green solution for the environment with CO2 reduction, energy efficiency and recyclability.
Product Parameters
We procure all our steel structure materials from China's largest steel factory, ensuring superior quality and peace of mind for our clients.
The principle of steels selection is not only to make the structure safe and reliable and meet the requirements of use, but also to save material and reduce cost. In order to ensure the bearing capacity of the bearing structure and prevent the brittle failure that may occur under certain conditions, the following factors should be considered comprehensively:
1. The importance of the structure
2. The nature of the load
3. The connection method
4. The working environment of the structure
5. The thickness of the steels
| Product Application |
| Light Frame Steel Construction Hangar Design Prefabricated Steel Structure Factory Building Workshop warehouse |
| A pre-engineered steel building is a modern technology where the complete designing is done at the factory and the building components are brought to the site and then fixed/jointed at the site, all is bolt connection, no need any welding! |
| An efficiently designed pre-engineered building can be lighter than the conventional steel buildings by up to 30%. Lighter weight equates to less steel and potential price savings in structural framework. |
| SPECIFICATION FOR STEEL STRUCTURE BUILDING |
| Main Steel Frame | Steel Column & Beam | 1. Material: Q345B (S355JR) or Q235B(S235JR)/ Welded/Hot Rolled H section steel |
| 2. Surface: Hot Dip Galvanized or Painted; |
| 3. Connection: All Bolts Connection; |
| Supporting System | Roof Purlin | C or Z Section Steel, Q235B |
| Wall Purlin | C or Z Section Steel, Q235B |
| Bracing | Steel Rod, Q235B |
| Cross Support | Steel Rod, Q235B |
| Column Support | Angle Steel; Steel Rod; Q235B |
| Angle Brace | Angle steel,Q235B |
| Tie Bar | Steel Pipe,Q235B |
| Roof & Wall System | 1. Single Colorful Corrugated Steel Sheet;
Thickness: 0.3-0.8mm |
2. Sandwich Panel with EPS, Rock Wool, Fiberglass,PU;
Thickness: 50-150mm; |
| Accessories | Door | Sliding; Rolled Up Door (Manual/Auto) |
| Window | Aluminum Alloy; PVC; |
| Downspout | PVC pipe; |
| Gutter | Galvanized Steel Sheet; Stainless Steel |
| Ventilator | Stainless Steel Turbine Ventilator |
| Skylight Belt | FRP or PC semi-transparent Skylight Belt |
| Flash | Color Steel Sheet |
| Fittings | Anchor Bolt; High Strength Bolt; Standard Bolt, Self-tapping nail etc |
| Steel structure building |
| 1. Primary Framing | Box beam column, cross steel column, H-shaped steel column, steel beam |
| 2. Secondary Framing | Galvanized Z and C sections purlin |
| 3. Roof and Wall panels | Steel sheet and insulated sandwich panels (EPS, fiberglass wool and PU). |
| 4. Steel Decking Floor | Galvanized steel decking board |
| 5.Structural subsystem | Divider, gutter, awning, partition wall |
| 6.Mezzanines, Platforms | Painted or galvanized H beam |
| 7.Other Building Accessories | Sliding doors, roll up doors, aluminium windows, louvers, etc. |
| Service Life | 50-70years | support | steel angle, steel pipe, steel round |
| Place of Origin | Qingdao,Shandong,China | Application | workshop, warehouse, poultry house,garage etc |
| Grade | Q235B, Q355B or as per customer's need | Bolt Grade | M20, M16, M14 etc |
| Connection | intensive bolt, ordinary bolt | Window | PVC steel or aluminum alloy |
| Downspout | PVC pipe or as per customer's request | Door | sliding or rolling door |
| Purlin | C/Z shape profile | Panel | EPS/PU/fiber glass/rock wool |
| Main Frame | Welded or hot rolled H-shaped steel, columns, beams, box beams and columns |
| Drawings & Quotation: |
| (1) Customized design is welcomed. |
| (2) In order to promise an accurate quotation and drawings, please let us know the length, width, eave height and local weather.We will quote for you promptly. |
Design and Quote
Our products are fully customizable, allowing us to design the steel structure warehouse of your requirements.
Please kindly inform us of the informations below:
1. Project site location;
2. Overall dimension (length*width*eave height);
3. Mezzanine or not? How many kgs of load per square meter on mezzanine?
4. Single-layer steel sheet wall or sandwich panel wall;
5. Snow load if applicable;
6. Wind speed/load;
7. Interior column allowed or not;
8. Any other particular requirements?
Customers Visiting
We warmly welcome you to visit our company and experience firsthand the excellence of our steel structure solutions. Explore our state-of-the-art facilities, witness our advanced manufacturing processes, and meet our dedicated team. During your visit, we will provide comprehensive insights into our expertise, product range, and customization capabilities.
package and transport
FAQ
1. Are you factory?
Yes, our factory produce and sell steel structures many years. We have a lot of experience at the steel building manufacturing area.
2. How do you guarantee the quality of the products?
Strict product quality control, quality makes the future.This is the tenet of our factory. Each product from our factory has strict testing procedures, and must be 100% quality before delivery.
3. How can I get the quotation of the project?
If you have drawing, we can offer quotation accordingly. If you don't have design, we will design some drawings for your confirmation, and then offer quotation.
4. Do you offer design service?
Yes, we could design full solution drawings. Utilizing AutoCAD, PKPM, MTS, 3D3S, Tarch, and Tekla Structures (Xsteel).
5. How to install? Can you provide engineer to help?
We will provide the detail installations , like the CAD, 3D tekla, etc. Or we will provide the engineers to help according to your requirement.
